2025 Harley-Davidson® Softail FXLRST - Low Rider ST V Twin 1923 (El Patron Harley-Davidson)

• Year: 2025
• Make: Harley-Davidson®
• Model: Softail
• Trim: FXLRST - Low Rider ST
• Stock Number: HD042585
• VIN: 1HD1YXA24SB042585
• Condition: New
• Type: Cruiser
• Mileage: 10
• Title: Clean
• Color: BILLIARD GRAY

• ABS Brakes
• Front Brake: Dual Hydraulic Disc
• Front Brake Diameter (in): 11.8
• Front Brake Diameter (mm): 300
• Rear Brake: Hydraulic Disc
• Rear Brake Diameter (in): 11.5
• Rear Brake Diameter (mm): 292

• Frame: Steel
• Front Suspension Size (in): 1.7
• Front Suspension Size (mm): 43
• Front Suspension Type: Inverted Fork
• Front Travel (in): 5.1
• Front Travel (mm): 130
• Number Rear Shock Absorbers: 1
• Rear Adjustable Rebound Damping
• Rear Adjustable Shock / Spring Pre-Load
• Rear Suspension Material: Steel
• Rear Suspension Size (in): 2.2
• Rear Suspension Size (mm): 56
• Rear Suspension Type: Twin Sided Swing Arm
• Rear Travel (in): 4.4
• Rear Travel (mm): 112

• Cruise Control
• Digital Instrumentation
• Trip Computer
• Trip Odometer

• Number Of Speeds: 6
• Primary Drive (Rear Wheel): Belt
• Transmission: Manual
• Primary Drive (Engine / Transmission): Chain
• Transmission Final Drive Ratio: 2.06
• Transmission Gear Ratio (1): 9.311
• Transmission Gear Ratio (2): 6.454
• Transmission Gear Ratio (3): 4.793
• Transmission Gear Ratio (4): 3.882
• Transmission Gear Ratio (5): 3.307
• Transmission Gear Ratio (6): 2.79

• Bore (in): 4.08
• Bore (mm): 103.5
• Carburetion Type: Fuel Injected
• Compression Ratio: 10.3
• Cooling System: Air / Oil
• Cylinders: 2
• Engine Brand Name: Milwaukee-Eight 117 High-Output
• Engine Disp. to Weight (cc): 2.8
• Engine Immobilizer
• Engine Immobilizer Brand: Digitally Encoded Security System (DESS)
• Engine Size (cc): 1923
• Engine Size (ci): 117
• Engine Stroke: 4-Stroke
• Engine Type: V Twin
• Fuel Capacity (gal): 5
• Fuel Injector
• Fuel Requirements: Premium
• Horsepower: 114
• Horsepower (kW): 85
• Horsepower RPM: 5000
• Starter: Electric
• Stroke (in): 4.5
• Stroke (mm): 114.3
• Torque (Ft Lbs): 128
• Torque (Nm): 174
• Torque RPM: 4000
• US Miles Per Gallon (Combined): 47
• Valve Configuration: OHV - Pushrod
• Valves: 8
• Valves Per Cylinder: 4

• Belt Guard
• Exterior Covers
• Exterior Guards
• Foot Pegs
• Foot Peg Location: Driver
• Fork Guards
• Front Fender
• Hand Grips
• Hard Side Cases
• Hard Side Case Location: Left and Right Side
• Hard Side Case Number: 2
• Helmet Storage
• Keyless Ignition
• Side Cover
• Rear Fender
• Side Storage Mount
• Side Case Mount
• Stand
• Stand Type: Kick
• Upper Fairing
• Tank Divider
• Windshield
• Windshield Mounts

• Headlight Type: LED
• Fuel Level Warning
• Rearview Mirrors

• Dry Weight (kg): 311
• Dry Weight (lbs): 686
• Front Tire (Full Spec): Michelin Scorcher 31 110/90 R19 62H
• Front Tire (Inches): 19
• Front Tire Aspect Ratio: 90
• Front Tire Speed Rating: H
• Front Tire Width: 110
• Front Wheel Width (in): 2.5
• Fuel Capacity (liters): 18
• Ground Clearance (in): 5.7
• Ground Clearance (mm): 145
• GVWR (kgs): 526
• GVWR (lbs): 1160
• Height (inches): 50
• Height (mm): 1290
• Length (inches): 92
• Length (mm): 2360
• Rear Tire (Full Spec): Michelin Scorcher 31 180/70 R16 77H
• Rear Tire (Inches): 16
• Rear Tire Aspect Ratio: 70
• Rear Tire Speed Rating: H
• Rear Tire Width: 180
• Rear Wheel Width (in): 5
• Seat Height (inches): 28
• Storage Capacity (cuft): 2
• Wet Weight (kg): 323
• Wet Weight (lbs): 712
• Wheelbase (in): 63.6
• Wheelbase (mm): 1615
• Wheels Composition: Aluminum
• Width (inches): 35
• Width (mm): 890
• Speedometer
• Tachometer

2025 Harley-Davidson® Low Rider® ST

Features may include:

DESIGN

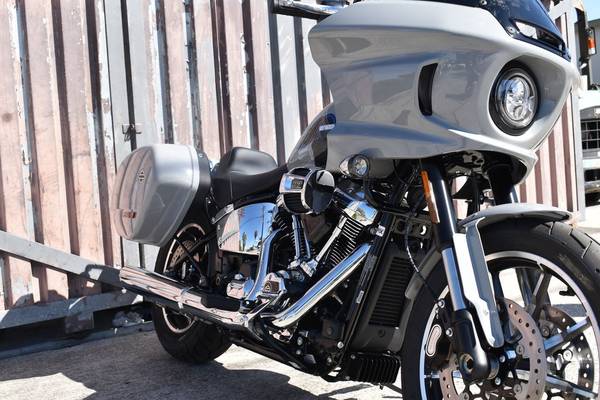

Fairing

• Inspired by West Coast customizers who embrace classic FXRT fairings, the Low Rider ST’s lightweight, frame-mounted fairing is designed with computational fluid dynamics (CFD) for refined aerodynamic performance.

LED Lighting

• A 5.75-inch headlamp, redesigned taillight, and LED turn signals improve visibility and signaling on the road.

Premium Paint + Graphics

• Premium paint and retro-inspired graphics highlight H-D’s iconic design heritage.

Solo Seat

• The slim solo seat holds you in place during aggressive acceleration and cornering.

Rear Suspension

• A tall monoshock kicks up the rear end and provides extra cornering clearance when you are pushing the limits.

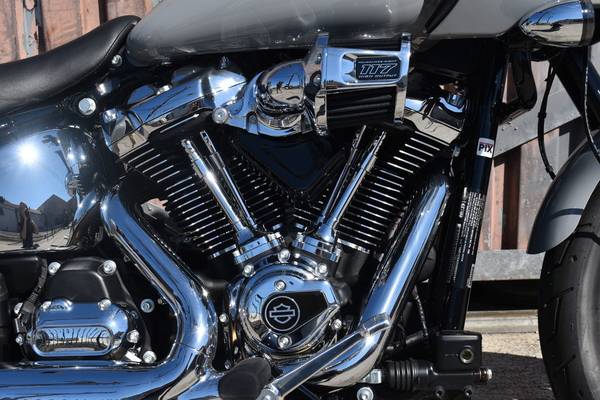

New Milwaukee-Eight® 117 H.O. Engine

• Improved mid- and top-end performance from the Milwaukee-Eight® 117 HO, which lets you stay on the gas longer during hard acceleration, with redline pushed from 5,600 rpm to 5,900 rpm.

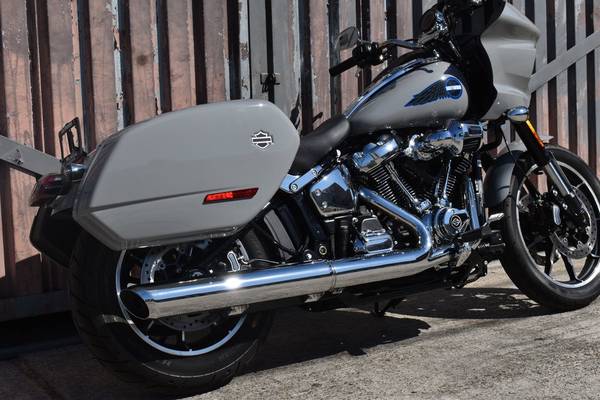

Two-Into-One Exhaust

• A sleek and refined exhaust line brings saddlebag symmetry, extra storage, and a timeless, cohesive look—setting the stage for customization upgrades.

Heavy Breather Intake

• Forward-facing air intake maximizes flow and provides intake tuning length to improve charging efficiency and peak torque.

Hand Controls

• New hand controls feature Ride Mode selection, a repositioned flash-to-pass switch near the left forefinger, and an adjustable brake lever.

Four-Inch Display

• An analog speedometer sits above a multi-function digital display that shows key information and integrates Ride Modes, TPMS, gear position indicator, and more.

USB-C Charging

• USB-C charging keeps your devices powered, so you can ride farther while using navigation, listening to music, and staying connected through your Bluetooth® headset.
