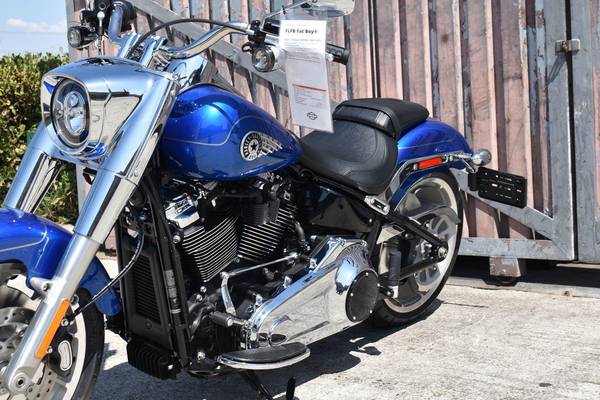

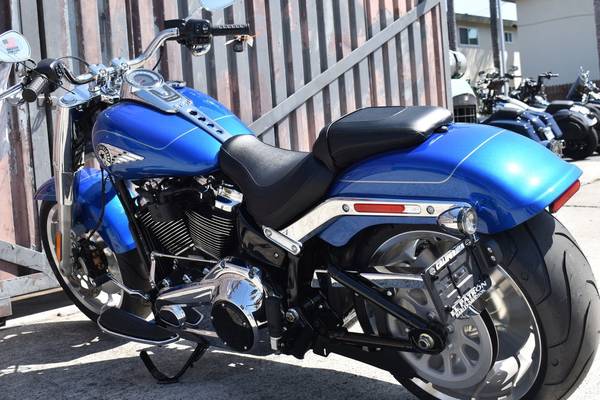

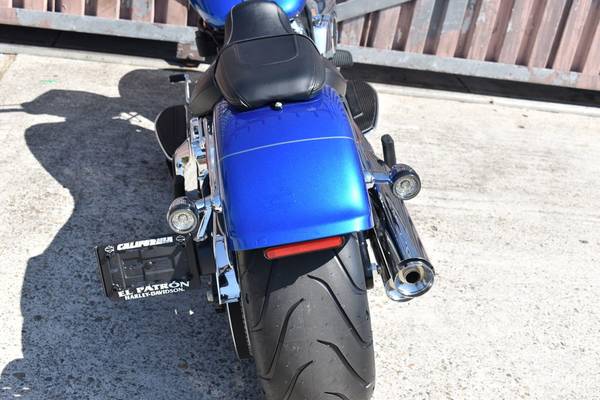

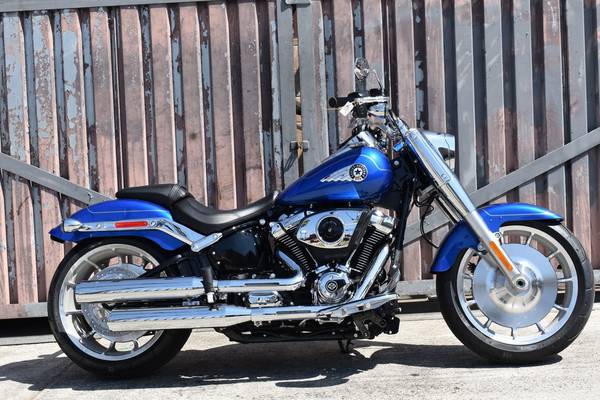

2025 Harley-Davidson® FLFB - Fat Boy V Twin 1923 (El Patron Harley-Davidson)

• Year: 2025
• Make: Harley-Davidson®
• Model: FLFB - Fat Boy
• Stock Number: HD035069
• VIN: 1HD1YF928SB035069
• Condition: New
• Type: Cruiser
• Title: Clean
• Color: BLUE BURST
• Mileage: 10

• ABS Brakes
• Front Brake: Hydraulic Disc
• Front Brake Diameter (in): 11.8
• Front Brake Diameter (mm): 300
• Rear Brake: Hydraulic Disc
• Rear Brake Diameter (in): 11.5
• Rear Brake Diameter (mm): 292

• Air Adjustable Rear Suspension
• Frame: Steel
• Front Suspension Size (in): 1.9
• Front Suspension Size (mm): 49
• Front Suspension Type: Telescopic Fork
• Front Travel (in): 5.1
• Front Travel (mm): 130
• Number Rear Shock Absorbers: 1
• Rear Adjustable Rebound Damping
• Rear Adjustable Shock / Spring Pre-Load
• Rear Suspension Material: Steel
• Rear Suspension Size (in): 1.7
• Rear Suspension Size (mm): 43
• Rear Suspension Type: Twin Sided Swing Arm
• Rear Travel (in): 3.4
• Rear Travel (mm): 86

• Cruise Control
• Digital Instrumentation
• Trip Computer
• Trip Odometer

• Heel Toe Shifter
• Number Of Speeds: 6
• Primary Drive (Rear Wheel): Belt
• Transmission: Manual
• Primary Drive (Engine / Transmission): Chain
• Transmission Final Drive Ratio: 2.06
• Transmission Gear Ratio (1): 9.311
• Transmission Gear Ratio (2): 6.454
• Transmission Gear Ratio (3): 4.793
• Transmission Gear Ratio (4): 3.882
• Transmission Gear Ratio (5): 3.307
• Transmission Gear Ratio (6): 2.79

• Bore (in): 4.08
• Bore (mm): 103.5
• Carburetion Type: Fuel Injected
• Compression Ratio: 10.3
• Cooling System: Air / Oil
• Cylinders: 2
• Engine Brand Name: Milwaukee-Eight 117 Custom
• Engine Disp. to Weight (cc): 2.88
• Engine Immobilizer
• Engine Immobilizer Brand: Digitally Encoded Security System (DESS)
• Engine Size (cc): 1923
• Engine Size (ci): 117
• Engine Stroke: 4-Stroke
• Engine Type: V Twin
• Fuel Capacity (gal): 5
• Fuel Injector
• Fuel Requirements: Premium
• Horsepower RPM: 4800
• Starter: Electric
• Stroke (in): 4.5
• Stroke (mm): 114.3
• Torque RPM: 3000
• Valve Configuration: OHV - Pushrod
• Valves: 8
• Valves Per Cylinder: 4

• Belt Guard

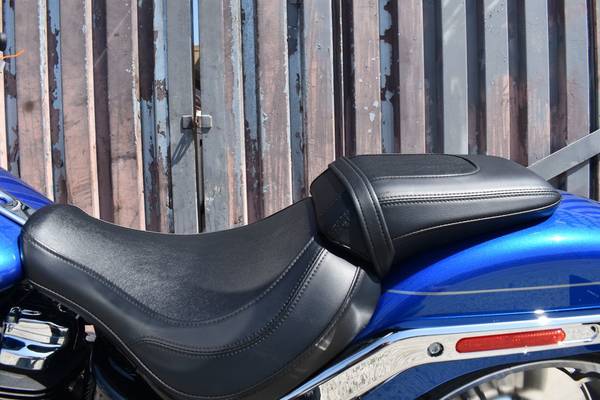

• Detachable Passenger Seat
• Exterior Covers
• Exterior Guards
• Floor Boards
• Foot Pegs
• Foot Peg Location: Passenger
• Fork Guards
• Front Fender
• Hand Grips
• Keyless Ignition
• Side Cover
• Rear Fender
• Stand
• Stand Type: Kick
• Tank Divider

• Headlight Type: LED
• Fuel Level Warning
• Rearview Mirrors

• Dry Weight (kg): 303
• Dry Weight (lbs): 668
• Front Tire (Inches): 18
• Front Tire Aspect Ratio: 60
• Front Tire Speed Rating: V
• Front Tire Width: 160
• Front Wheel Width (in): 4.5
• Fuel Capacity (liters): 18
• Ground Clearance (in): 4.9
• Ground Clearance (mm): 125
• GVWR (kgs): 533
• GVWR (lbs): 1175
• Height (inches): 44
• Height (mm): 1120
• Length (inches): 93
• Length (mm): 2365
• Rear Tire (Inches): 18
• Rear Tire Aspect Ratio: 40
• Rear Tire Speed Rating: V
• Rear Tire Width: 240
• Rear Wheel Width (in): 8
• Seat Height (inches): 26
• Wet Weight (kg): 315
• Wet Weight (lbs): 694
• Wheelbase (in): 65
• Wheelbase (mm): 1650
• Wheels Composition: Aluminum
• Width (inches): 40
• Width (mm): 965
• Speedometer
• Tachometer

2025 Harley-Davidson® Fat Boy®

Features may include:

DESIGN

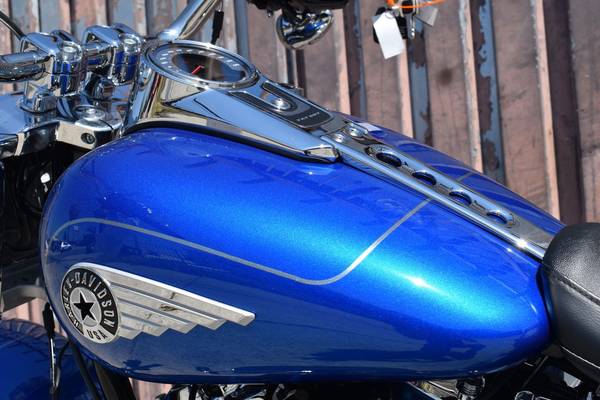

• Paint

The best factory paint in the world covers a classic rounded gas tank that is finished with a new, bold tank medallion.

• Wheels

18-inch machined Lakester wheels with massive tires are covered by cutback fenders for powerful stance and commanding presence.

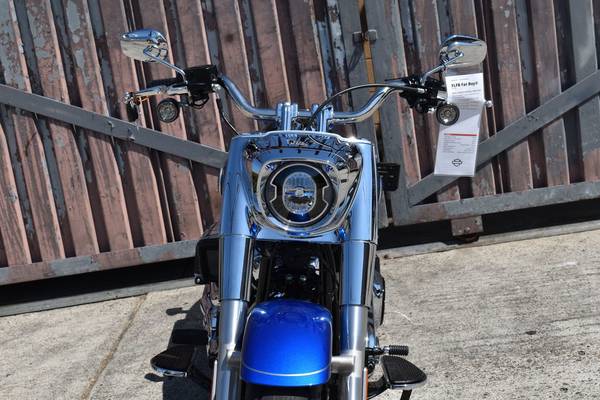

• Headlamp Nacelle

The iconic Fat Boy headlight nacelle shines in bright polished chrome, accentuating the large and muscular look of the front end.

PERFORMANCE

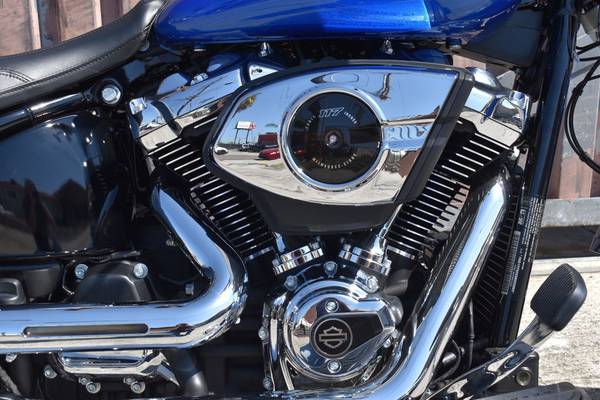

• Milwaukee-Eight® 117 Custom Engine

Milwaukee-Eight® 117 Custom V-twin engine delivers sound, feel, and all the power you need for effortless long-mile highway cruising or exhilarating in-town performance.

• Rear Suspension

Updated monoshock suspension is more comfortable while still firm and composed during aggressive riding.

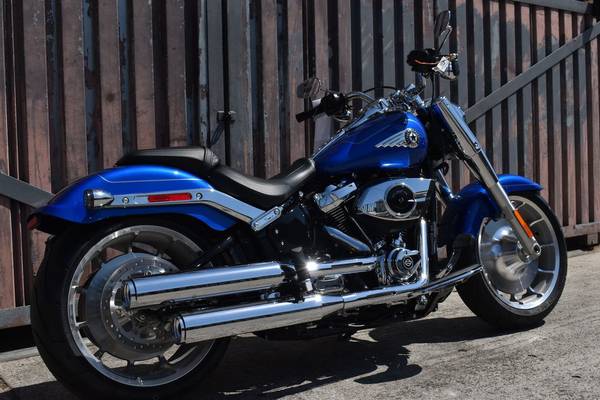

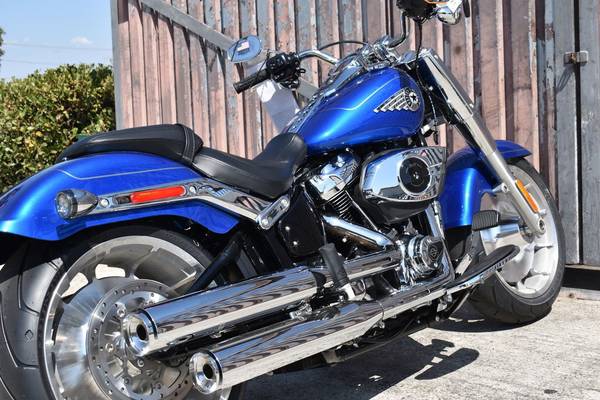

• Two-into-Two Exhaust

A key feature of Fat Boy design, the two-into-two exhaust has been updated for high-flowing performance and a rich V-twin sound.

INNOVATION

• Five-Inch Analog Display

Analog gauge is clear and easy to read, while an integrated digital display shows key information like Ride Modes.

• Hand Controls

Updated hand controls accommodate Cruise Control and newly integrated tech features, including Ride Modes and Traction Control.

• USB-C Charging

USB-C charging keeps your devices powered, so you can ride farther while using navigation, listening to music, and staying connected through your Bluetooth® headset.
