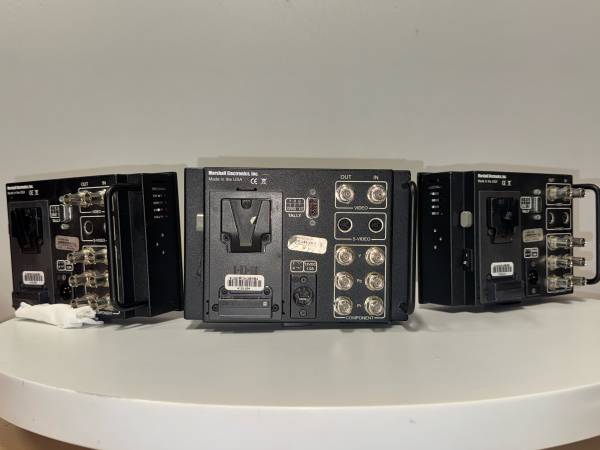

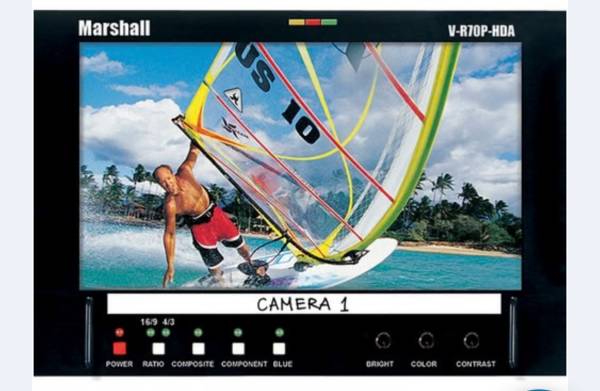

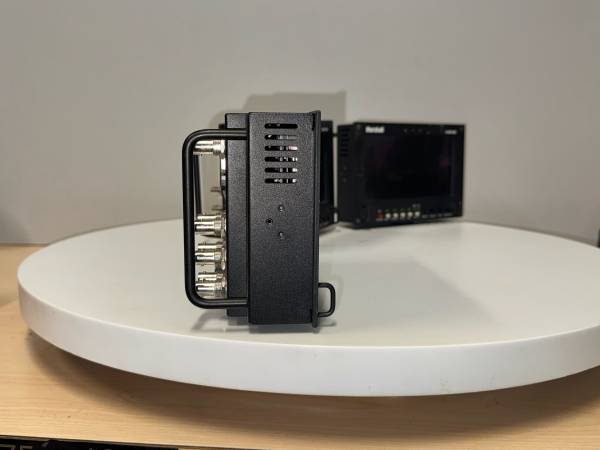

Marshall ⚡️ V-R70P-HDA HD/SD (3 Video Assist Monitors) - $250 (Oceanside)
condition:
excellent
make / manufacturer:
Marshall
model name / number:
V-R70P-HDA
size / dimensions:
7”
QR Code Link to This Post
$200 / ea
$450 / 3
Analog signals are digitized using advanced 10-bit processing with 4x oversampling and adaptive 5-line comb filter. Video is scaled to fit onscreen in the highest resolution using a state-of-the-art LSI that incorporates 4x4 pixel interpolation with precision Gamma correction to produce the best images available.
Durable metal enclosure
"V" Mount battery adapter included
Runs 4 to 6 hours on optional 50WH battery
High Resolution 7-inch widescreen 800 x 480 Dots with 1.2 million pixels
Optical-grade polycarbonate screen cover with Anti-reflective/Anti-glare coating
100% digital processing
Analog signals converted to 10-bit digital
High resolution scaling of all images
Wide viewing radius
380 candelas per square meter (cd/m²) luminance produces enhanced image quality in varying light and viewing conditions
400:1 ratio of contrast between black and white luminance values
4:3 and 16:9 screen aspect ratios
Automatic NTSC/PAL format detection
Easy-to-see three color tally indicators
Built-in Color Bars
Blue Screen for color adjustment
Adjustment Settings Memory
Includes 1 (one) -20 mounting plate that can be
attached to any edge of the enclosure
(additional mounting plates available)
Includes universal voltage Class-2 power supply
Optional rack mount kit
Standard inputs:
Composite Video PAL/NTSC with loop output
Component YPbPr HD/SD with loop-out
4-Pin XLR D.C. power jack
V-R70P-HDA SPECIFICATIONS
Display (Viewing Area) 7" (6.14" × 3.27")
Resolution (Pixels) 800 H × RGB × 480 V
Dot Pitch 0.065mm × 0.175mm
Brightness (in cd/m²)380
SystemNTSC/PAL auto recognition
Inputs1 Composite, 1 Component HD/SD

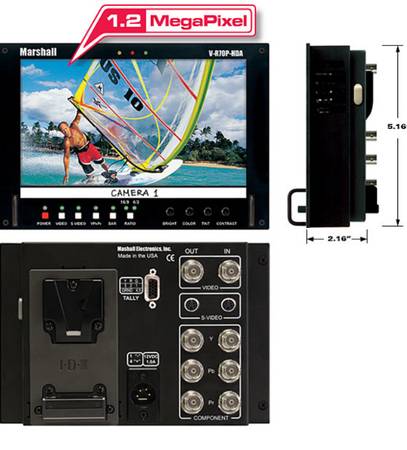

Dimensions 7.6"W × 5.16"H × 2.16"D
Approx. Weight1.8 lbs
Power Consumption 10-17 VDC, 600 mA
