OMNITURN GT-75 (Series I) CNC Gang Lathe - $7,250 (Vista)
condition:
good
make / manufacturer:
OMNITURN
model name / number:
GT-75
size / dimensions:
66 L x 34 W x 75 H
QR Code Link to This Post

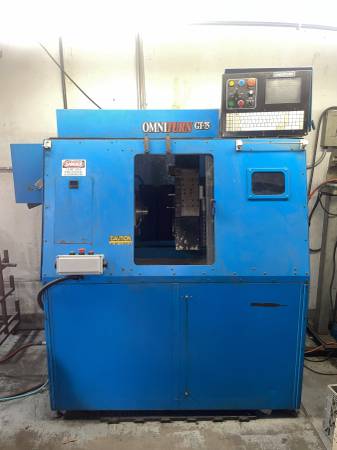

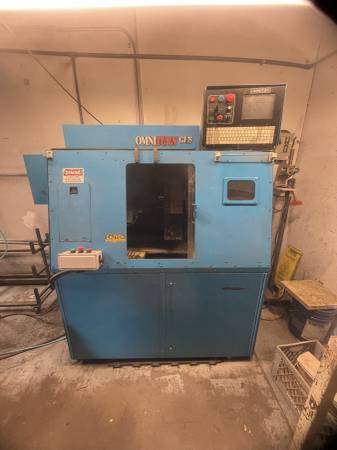

This classic OMNITURN GT-75 represents the original, robust design in high-precision, gang-tool turning centers. Known for its compact footprint and rapid cycle times, the Series I is a workhorse ideal for high-speed production of small, intricate parts requiring high accuracy. Built with a 75° slant-bed design, it provides exceptional chip evacuation and rigidity. Equipped with the legacy OMNITURN G3 or G4 PC-based CNC Control, this machine delivers outstanding repeatability, making it a reliable choice for shops focused on small-part efficiency and tight tolerances.
The GT-75 is configured with a 5C collet nose for fast, accurate workholding and features high-resolution servo-driven slides on precision linear ways, providing accuracy and fast 300 IPM rapid traverse rates on both axes.
OMNITURN GT-75 (Series I) - Key Specifications
Specification Detail

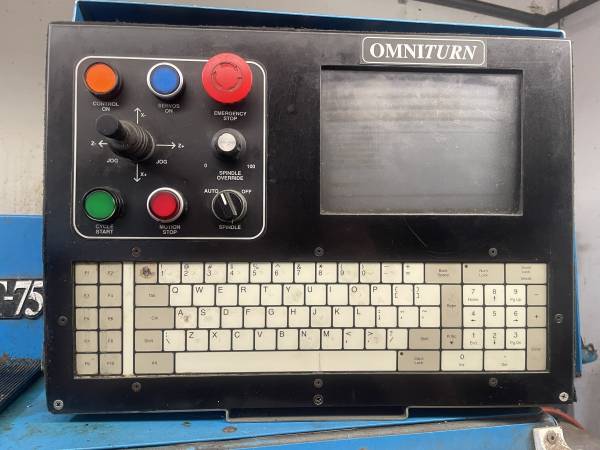

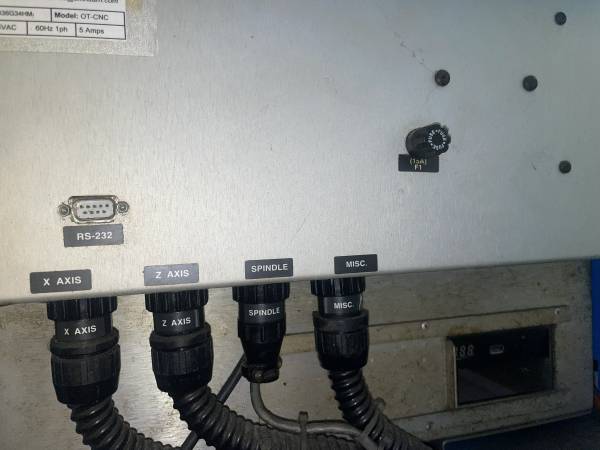

CNC Control OMNITURN G3 or G4 PC-Based CNC
Spindle HP 5 HP Max Rating

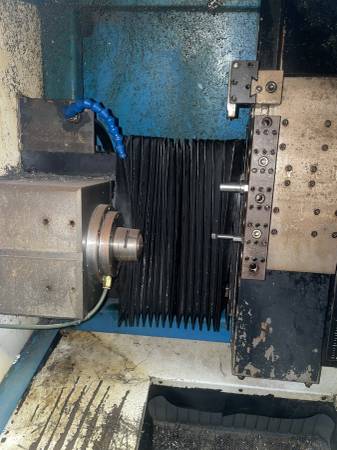

Spindle Nose 5C Collet / 4° Camlock
Max Bar Capacity 1-1/16" (1.06")
Max Spindle Speed 4,000 RPM (Standard)
X-Axis Travel 12.0"
Z-Axis Travel 9.0"
Max Turning Diameter 6.0"
Rapid Traverse Rate 300 IPM (X & Z Axes)
Tooling Type Gang Tooling Plate (6" x 14")
Resolution/Repeatability 0.00005" / 0.0001"
Collet Actuation Pneumatic Collet Drawbar
Weight (Approx) 1,650 - 2,000 Lbs.
Dimensions (Approx) 66" W x 34" D x 75" H
