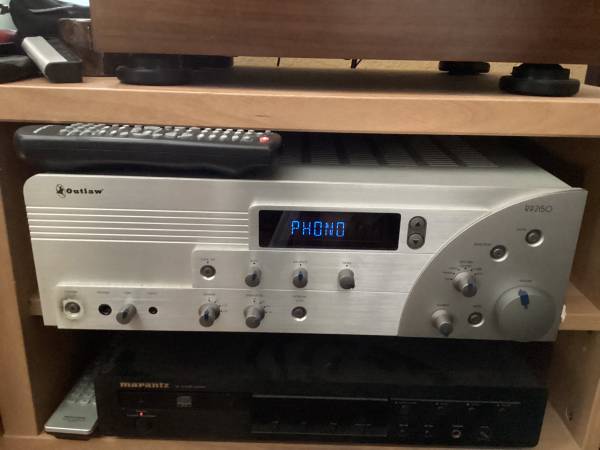

Stereo Receiver/Amp - $350 (Ramona)
QR Code Link to This Post
With Remote.
Key Specifications
Parameter Spec / Description
Continuous Power (per channel) 100 W × 2 into 8 Ω, 20 Hz–20 kHz, < 0.03% THD (both channels driven)
Power into 4 Ω 160 W × 2, 20 Hz–20 kHz, < 0.03% THD
Measured Power (Audioholics) ~110 W × 2 into 8 Ω, ~165 W × 2 into 4 Ω (at < 0.1% THD)
Dynamic / Burst Power (1 kHz) ≈ 168 W into 8 Ω (2 channels driven)
Frequency Response Flat across audio band; –3 dB point around 60 kHz
Signal-to-Noise Ratio (S/N) 96 dB (unweighted)
Distortion (THD + N) < 0.03% over rated band (20 Hz – 20 kHz) per manufacturer
Bass Management / Crossover Back-panel switch selectable: 60 / 80 / 100 Hz / Bypass; 12 dB/octave (2nd order) low-pass/high-pass slope
Tone Controls Bass (centered at 50 Hz, ±6.5 dB) and Treble (center 10 kHz, ±6.5 dB)
Input Sensitivities / Impedances High Level: 200 mV / 47 kΩ MM Phono: 3.3 mV / 47 kΩ MC Phono: 0.6 mV / 47 kΩ
FM Tuner 87.5–108 MHz band, usable sensitivity 12 dBf (IHF), S/N (Mono/Stereo): 75/70 dB, stereo distortion 0.24%, stereo separation ~37 dB @ 19 kHz, selectivity ±10 kHz 70 dB
AM Tuner 530–1710 kHz band, usable sensitivity 500 µV/m, S/N > 54 dB, selectivity ±10 kHz > 25 dB
Power Consumption 5 W (idle), up to ~400 W (maximum, both channels driven)
Dimensions / Weight 5.75″ (H) × 17.1″ (W) × 15″ (D); ~27 lb
General / Other Features
– USB-B input (for use as USB DAC)
– Phono input with MM / MC switching
– Tape loop / record out, external processor loop
– Pre-out / main-in (via jumpers)
– Subwoofer output (works only with A-speaker when bass management active)
– Two pairs of speaker outputs (A & B) with ability to use A+B (but note caution with impedance)
– 12 V trigger out, IR in/out, remote control, AM/FM antenna inputs
