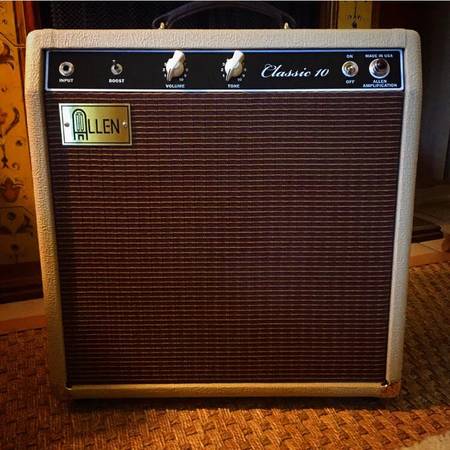

Allen Classic 10 (Fender Tweed Princeton 5F2-A) - $900 (La Mesa)
QR Code Link to This Post
Features top quality components throughout as you have come to expect from Allen. Switchcraft jacks, Carling switch, Mallory tone caps, glass-epoxy eyelet board construction, best current production tubes and of course a stainless-steel chassis and finger-jointed pine cabinet. 8 foot grounded power cord, tube retainers, fuse holder and damped potentiometers with set-screw knobs!
Also available as a head or a 1x8, 1x12 or 2x6 combo. Black/silver, blond/oxblood, blue diamond/blue silver, or blond with dark brown/black. Choice of knobs and pilot light jewel color. Many Eminence speaker options available.
Output Power 10 watts.
Tube Compliment (1) 12AX7 preamp tube and (1) 6L6GC or EL34 power tube.
Class A single-ended with cathode bias.
Equalization TONE control to cut or boost highs, BOOST switch "ON" thins out bass.
Chassis Aluminum chassis.
Topology Loosely based on tweed Princeton 5F2-A™ but with more power, unique boost feature and a solid-state rectifier.

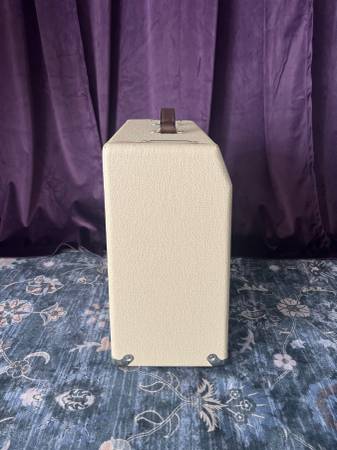

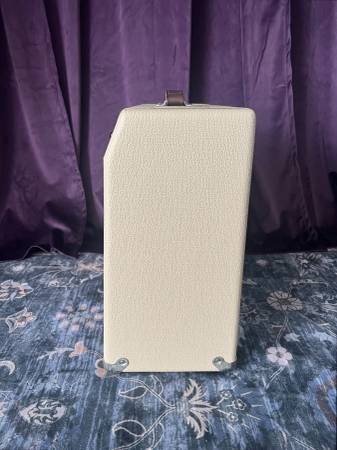

Cabinet Finger-jointed pine with Birch plywood floating speaker baffle and MDF back panels. Nickel plated bottom corners and glides, strap handle and chassis straps. Many Tolex and grill cloth options available.

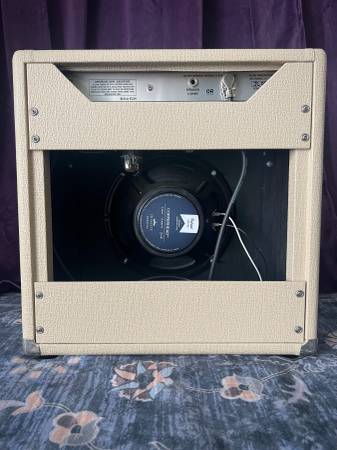

Speaker Eminence Copperhead 8 ohm speaker
Cathode biased power tube can be a 6L6GC or an EL34. Unique BOOST switch pumps up the gain for more mids and highs and eliminates the negative feedback for a more Marshal like overdrive tone.
Size and Weight 17"W by 17"H by 9"D and 24lbs.
Original build docs and schematic included
