KYB Shock Springs and KYB Fork Springs - $75 (La Mesa)
QR Code Link to This Post

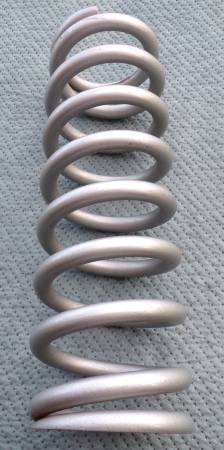

This Spring was taken off a 2009 Honda CRF450R and is good condition. It is the Stock Spring for the 2009-2016 Honda CRF450R. It functional and can be used for several Kayaba/KYB shocks for Honda Yamaha, Kawasaki and Suzuki Models. Please check Specifications and application prior to making a purchase.
Spring Length: 255mm
I.D. 64mm Top. 66mm Bottom
O.D. 86mm Top. 89mm Bottom

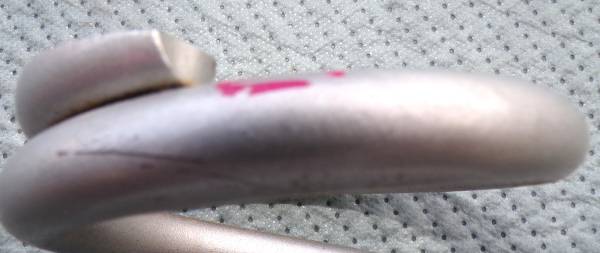

Silver with Pink Mark. 9 Coils
Steel Spring. Not Titanium.
2. KYB 5.5KG Shock Spring Yamaha YZ450F YZ250F, YZ125, YZ250, WR250F 5UN-22212-20 $75.00
This Spring was taken off a 2003 Yamaha YZ450F and is good condition. It is the heavier Spring for the YZ & WR Family will work with several models up to 2011. It will also work with the KX & KLX Family from 88-05 and the Honda Family CR500 & CR125 up to 2007 Models.
It will Cross Reference to the Eibach to the 892 Family of Springs.
Please check Specifications and application prior to making a purchase.
Spring Length: 260mm
I.D. 60.5mm Top. 61.25mm Bottom
O.D. 82mm Top. 83.75mm Bottom
Silver with Pink Mark. 9 Coils
Steel Spring. Not Titanium.
These measurements are all approximate but are pretty close.
3. KYB 4.7KG Shock Spring Yamaha YZ450F YZ250F, YZ125, YZ250, WR250F 5UN-22212-20. $75.00
This Spring was taken off a 2005 Yamaha YZ250F and is good condition. It is the Lighter Spring for the YZ WR Family will work with several models up to 2011. It will also work with the KX & KLX Family from 88-05 and the Honda Family CR500 & CR125 up to 2007 Models.
It will Cross Reference to the Eibach to the 892 Family of Springs.
Please check Specifications and application prior to making a purchase.
Spring Length: 260mm
I.D. 60.5mm Top. 61.25mm Bottom
O.D. 82mm Top. 83.75mm Bottom
Silver with Red Mark. 9 Coils
Steel Spring. Not Titanium.
These measurements are all approximate but are pretty close.
4. .438Kg 4.4 N/mm Fork Springs, KYB 48mm Yamaha YZ250F, YZ450F CRF450R, KX450, RMZ. $75.00
These Springs were taken off a 2005 Yamaha YZ250F. They are the Standard Springs for that Model. They will fit most, not all, KYB 48mm Forks from 2005 to Present Honda, Yamaha, Kawasaki and Suzuki Models. Please check Specifications, including Spring Length and application prior to making a purchase.
Spring Length: 465mm
I.D. 35mm Top. 35mm Bottom
O.D. 43mm Top. 43mm Bottom
Steel Springs.
No Spring Marks. Indicating a Yamaha .438Kg, 4.4 N/mm Rated Spring.
These measurements are all approximate but are pretty close.
CALL OR TEXT. I do not answer CL E-Mails.
