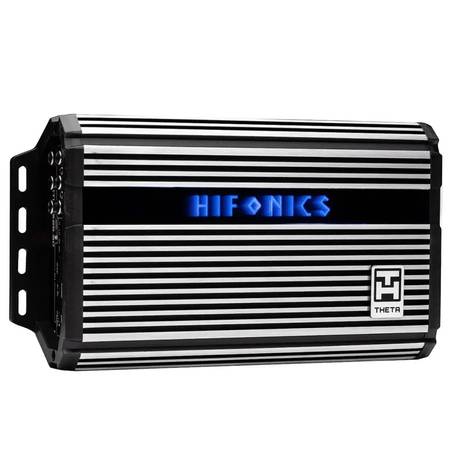

Firm Price! Brand New Hifonics ZEUS THETA Compact 1600W Amplifier - $170 (El Cajon)
QR Code Link to This Post
LOW NOISE PREAMPLIFIER CIRCUIT
Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.

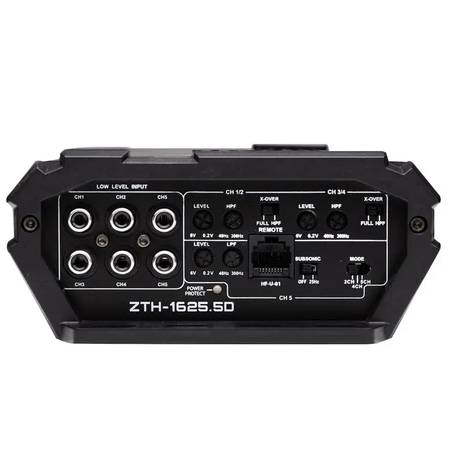

RCA INPUTS
Nickel-plated high-temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant.
OPERATION MODE
Four-Channel, Full Range, Bridgeable: Flexible installation allows this amplifier to run in four-channel or bridged mono mode.
CROSSOVER TYPE
Onboard electronic crossover
ELECTRONIC EQUALIZER
Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.
CLASS / TOPOLOGY
Class D: High efficiency with big power in a small footprint.
OUTPUT DEVICE TECHNOLOGY
PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation.
HEAT SINK
Aluminum: Old School Hifonics Heat sink for Superior Heat Dissipation.
POWER SUPPLY
Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.

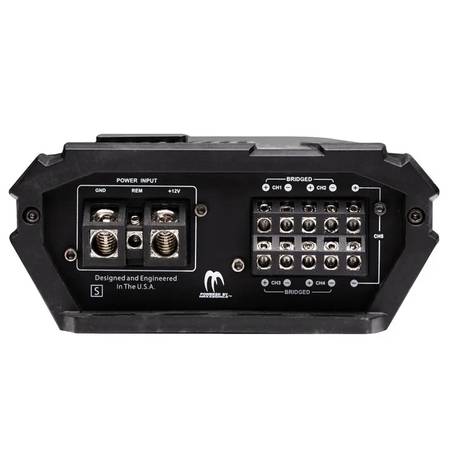

CONNECTION TYPE
Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire management profile.
LED SYSTEM PROTECTION CIRCUITRY DIAGNOSTICS
Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.
BASS REMOTE INCLUDED
Yes
Specifications:
Amp Class: Class D
Amp Total Channels: 5
Amp Max Power (watts): 1600
Amp Power @ 1 Ohm (ch x watts): 1 x 500 Sub Only
Amp Power @ 2 Ohms (ch x watts): 4 x 135 + 1 x 250
Amp Power @ 4 Ohms (ch x watts): 4 x 65 + 1 x 125
Amp Crossover: Variable Electronic 12dB Per Octave
Amp Variable Low Pass Crossover 12dB per Octave: 40Hz-300Hz
Amp Variable High Pass Crossover 12dB per Octave: 40Hz-300Hz
Amp Tone Control / Parametric EQ: Built-in bass control
Amp Subsonic Filter: 25Hz
Amp Variable Voltage: 0.2-6V
Amp Frequency Response: 10Hz-500Hz
Amp Total Harmonic Distortion (THD): < 0.1%
Amp Speaker Level Audio Inputs - Yes
Amp Power Terminal 12v/GND: 4 AWG
Amp Speaker Terminal Wire Gauge: 12 AWG
Amp Fusing: External 100A
Bass Remote Included: Yes
