TURBINE WASHER JUNIPER CHINOOK COMPRESSOR WASH RIG - $1,500 (El Cajon)
QR Code Link to This Post
Could be used for mobile race car wash rig at the track etc.
Length - 1321mm (52")
Width - 686mm (27")
Height - 1118mm (44")
Fluid tanks - 2
Fluid tank capacity (each) - 34ltr (9 US galls)
.
The C800/BH variant of this 0376 rig was developed for washing the Avco Lycoming T55 engine in the Boeing Chinook helicopter.
INTRODUCTION

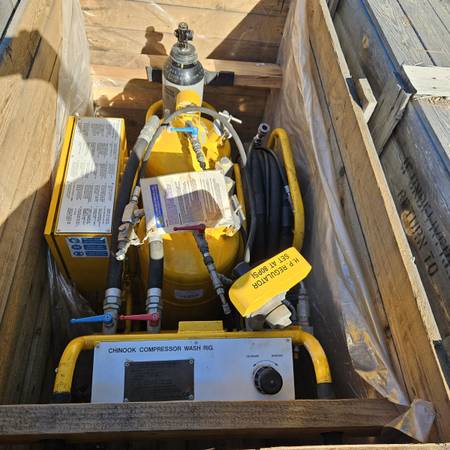

The combination 800/BH mobile engine compressor wash rig consists of two stainless steel pressure tanks, each having a capacity of 34 litres (9 US gal.) mounted in tandem on a transportation trolley, together with a nitrogen cylinder. Each of the stainless steel pressure tanks is equipped with a sight glass indicating the level of fluid, a filler cap, gauze strainer, pressure relief valve, nitrogen inlet valve, fluid outlet valve and drain valve.
