HAAS SL20 CNC LATHE - $28,500 (Yuma)

2947 S Kish Ave near Ste A

condition: good

make / manufacturer: HAAS

model name / number: SL 20

size / dimensions: 126.5x62x72

QR Code Link to This Post

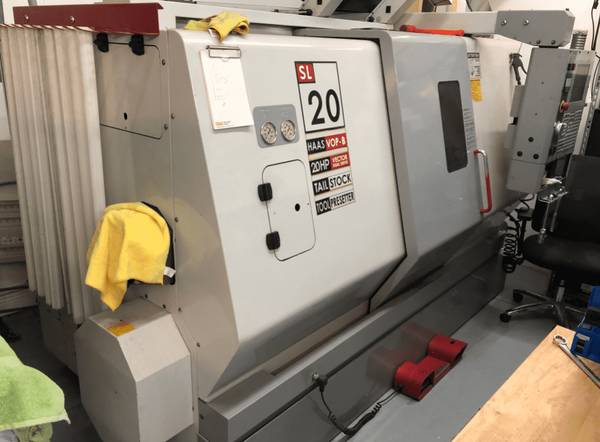

This HAAS SL 20 CNC Lathe Turning Center has a maximum turning diameter of 10.3 inches and a maximum turning Length of 20 inches. It features a 20HP Vector Spindle Drive, capable of 4,000 RPM maximum spindle speed, and an A2-6 Spindle nose. The machine has a 2" bar capacity and an 8" Kitigawa 3 Jaw Chuck. Additional features include the Auto Tool Presetter, and Programmable Tailstock with 20" Travel. It comes with a Torbul Vortex Skimray Coalescer, and an ATS/Hardinge S-20 Collet Chuck System and several S-20 Collets Several Spare parts, many Brand new tool holders and inserts, Haas Jaw Boring Ring and 2-Sets of Soft steel Jaws, Brand New Royal Live Center, and Spindle liners
Here's a more detailed breakdown of the specifications:
General:

Control: Haas 32-bit CNC Control.
Weight: Approximately 9,000 lbs.
Dimensions: 126.5" x 62" x 72"

Turning Capacity:

Max Turning Diameter: 10.3"
Max Turning Length: 20"
Swing Over the Front Apron: 23"
Swing Over Cross Slide: 9.5"

Spindle:

Spindle Drive: 20 HP vector drive.
Spindle Speeds: 4,000 RPM max.
Spindle Nose: A2-6.
Hole Thru Spindle: 3.0"
Hole Thru Draw Tube: 2.06".
Chuck Size: 8"

Other Features:

Bar Capacity: 2"
X-axis Travel: 8.45"
Z-axis Travel: 20"
Rapid Traverse Rate (X and Z): 710 IPM.
Turret: 10-station.
Turret Index Time: 1 second per station.
Tailstock: Programmable, 20" Travel
Tool Presetter: Included
Coolant System: Included.
Chip Auger: Included

NOTE: Buyer 100% Responsible for rigging costs, crating/packaging and shipping.
